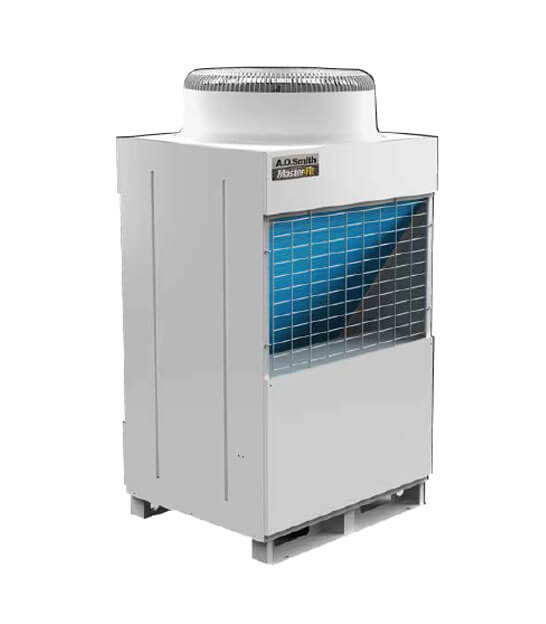

Our impressive line of environmentally friendly offerings has now been expanded to include one of the most energy-efficient and innovative commercial products on the market. The electric commercial heat pump water heater works great in applications where the need is for hot water. Applications requiring significant hot water usage will maximize energy savings for the shortest payback periods. Best of all, heat pump heaters are three times more efficient than standard electric water heaters and up to four times more efficient than conventional gas water heaters.
- COMMON APPLICATIONS
- Restaurant/Kitchens
- Hospitals, Hotels, Schools, Hostels, Resorts
- AES feature adopts heating cycle automatically, which will facilitate water usage and save energy by minimizing thermal loss.
- Villas, Apparments, Guest houses
- Factories, Laundries
- WHY ARE HEAT PUMP WATER HEATERS AN ENVIRONMENTALLY FRIENDLY CHOICE?
- Hiqh efficiency with coefficient of performance (COP) up to 4
- No fossil fuels are used or burned at the source
- Ozone layer-friendly refrigerant R410a
- Uses less electricity than standard electric water heaters
- Contributes to space cooling at the same time
- Taps into heat sources typically discarded by other units for peak efficiency
- HOW DO HEAT PUMP WATER HEATERS WORK?
- Heat pump water heaters capture heat and humidity from the surrounding atmosphere through the cooling coil and utilize it for heating potable water. Simply put, they move heat from where it is not needed to where it is wanted. This innovative advanced technology provides low cost hot water and free cooling (by product).
| ITEM | CAHP-MC-38 (10HP) | CAHP-MC-19 (5HP) |
| POWER SUPPLY | 380V 3N ~ 50Hz | 380V 3N ~ 50Hz |
| VOLTAGE RANGE | 380V +/- 10% | 380V +/- 10% |
| RATED HEATING CAPACITY(1) | 38 kW | 19.8 kW |
| RATED WATER FLOW(1) | 6.5 CMH | 3.4 CMH |
| RATED POWER INPUT (1) | 10.3 kW | 6.02 kW |
| RATED OPERATION CURRENT(1) | 18.6 A | 11.0A |
| MAX. POWER INPUT | 13.2 kW | 6.8 kW |
| MAX. OPERATION CURRENT | 23.3 A | 11.7 A |
| OPERATION NOISE (2) | 65 dB(A) | 60 dB(A) |
| REFRIGERANT / QUANTITY | R410a / 6.2kg | R410a / 2.8kg |
| REFRIGERANT SIDE HIGH SIDE | 4.2 Mpa | 4.4 Mpa |
| DESIGN PRESSURE LOW SIDE | 3.1 Mpa | 3.1 Mpa |
| WATER SIDE DESIGN PRESSURE | 1.0 Mpa | 1.0 Mpa |
| WATER SIDE PRESSURE DROP (3) | 45 kPa | 73 kPa |
| WATER CONNECTION SIZE | DN40 (R1 1/2") | DN32 (R1 1/4") |
| WATERPROOF CLASS | IPX4 | IPX4 |
| NET WEIGHT | 287 kg | 170 kg |
| DIMENSIONS (L x W x H) | 1020 x 846 x 1840 mm | 719 x 761 x 1160 mm |
